TwinStim Plus 3rd Edition

TwinStim Plus 3rd Edition

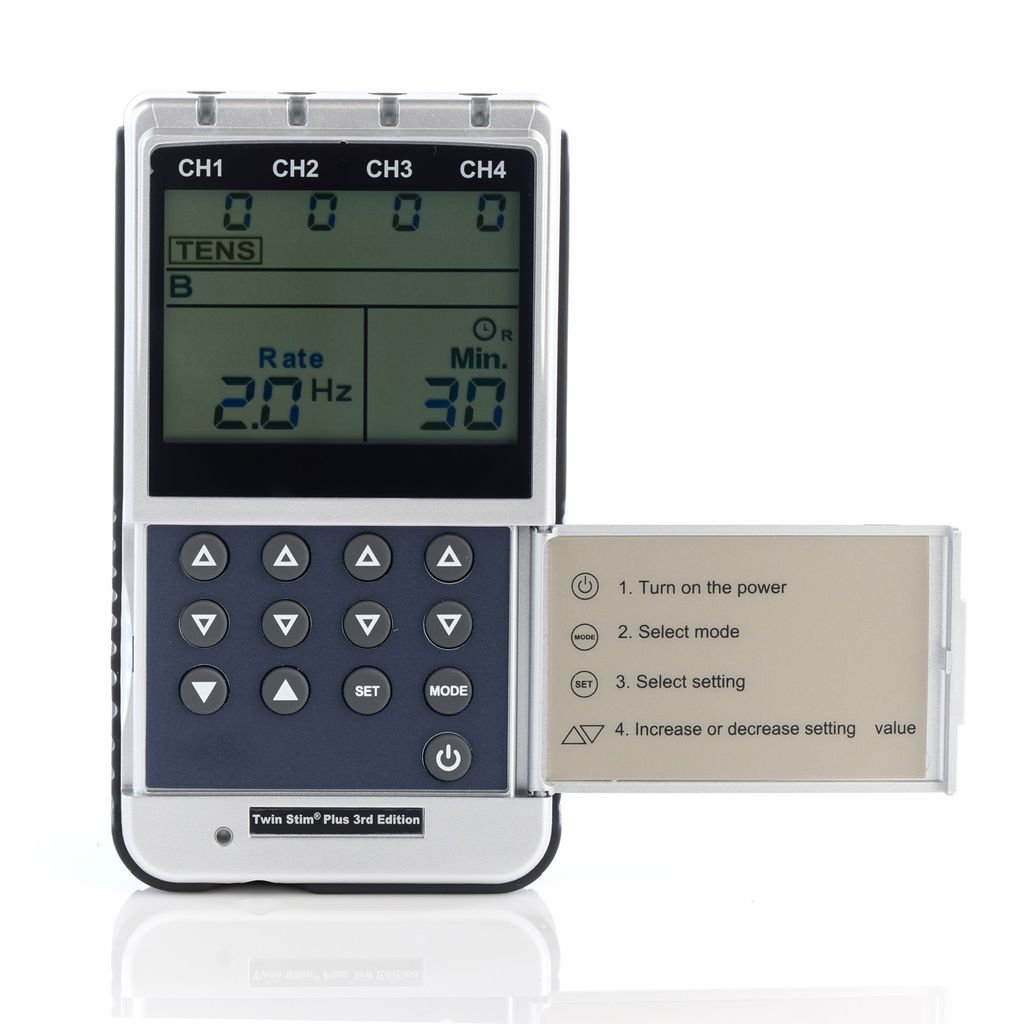

The Twin Stim Plus 3rd Edition is a four (4) channel device that combines TENS, EMS, IF (Interferential) and Russian therapies in a single portable unit. With separate intensity controls for each channel and fully adjustable parameters, patients can easily customize their treatment. In addition, with four channels, patients have the ability to treat large areas (entire back) or multiple treatment sites at the same time. Other features include adjustable ramp time, large LCD screen display, two treatment timers and patient compliance meter to store operation records.

  • Simple to operate, portable device for pain management

  • Reduces inflammation and edema

  • Great for muscle re-education

  • Increases local blood circulation and relaxes muscle spasms

  • Intensity level is controlled by the press of a button

  • Four Stimulation Programs: TENS, EMS, IF and RUSS (Russian)

  • Five modes for TENS therapy: Burst, Normal (N), Modulation, Strength-Duration 1 and 2

  • Three modes for EMS therapy: Constant, Synchronous, and Alternate

  • Three modes for IF therapy: Normal, Modulation and Modulation 1

  • Three modes for RUSSIAN therapy: Normal, Modulation and Modulation 1

  • Comes complete with carrying case, four sets of lead wires, four AA batteries, AC adapter, manual and two packs of four self-adhesive reusable electrodes

  • One year warranty

To Locate Your Distributor, Call: 888.549.4945

Ordering Details

  • DS5402
    • TwinStim Plus 3rd Edition

Standard Accessories

  • CC5081
    • Carrying Case
  • (2) WW3005
    • Lead Wires, 45", 2/pk
  • TA5013-I
    • Alkaline 9V Battery
  • (2) EP2020WC2-INTM
    • InTENSity Electrodes, 2" x 2", Mini 4/pk
  • DI0001X
    • AC Adapter

Technical Specifications

  • Channels:
    • Four, isolated between channels
  • Waveform:
    • Bi-Phasic Square Pulse
  • Power Source:
    • DC 6V, 4xAA 1.5V battery or
  • AC adaptor output:
    • DC 9V, 800mA
  • Dimensions:
    • AC Adapter

  • Pulse Rate:

    • TENS/EMS: 2Hz~150Hz

      IF: 4000Hz~4150Hz

      RUSS: Fixed rate: 2500Hz;

      Burst rate: 20Hz~80Hz

      Pulse Width: 50μs~300μs

  • On Time:
    • Adjustable, 2~90 seconds, 1 sec./step
  • Off Time:
    • Adjustable, 0~90 seconds, 1 sec./step
  • Ramp Time:
    • Adjustable, 1~8 seconds in 1 sec. increments
  • Treatment Time:
    • Two timers. Continuous or 1 - 60 min in 1 min increments from 1-15, 5 min increments from 15 to 60 minutes.
