TwinStim Plus 2nd Edition

TwinStim Plus 2nd Edition

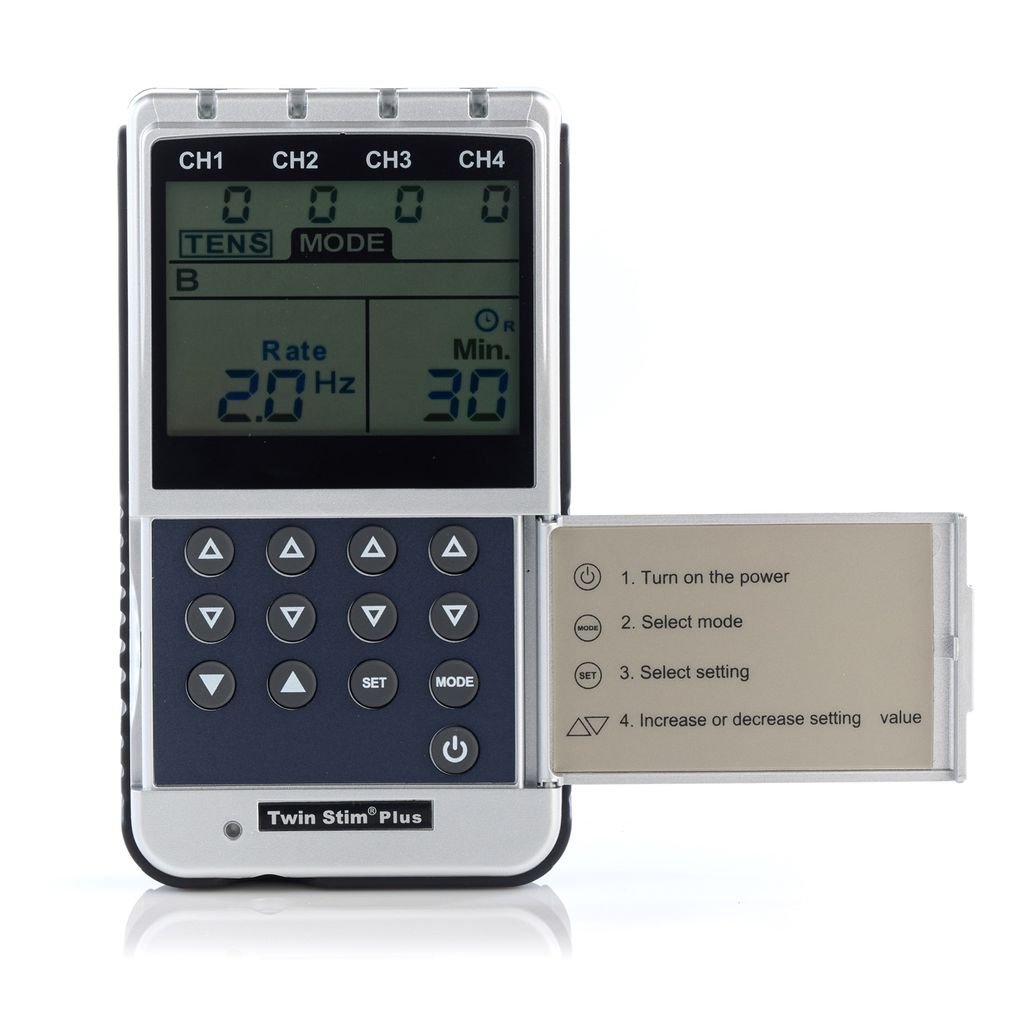

The popular Twin Stim® Plus is a four channel TENS and EMS combo unit complete with eight electrodes. The Twin Stim Plus gives the user the choice of five modes of TENS and three modes of EMS. Unit can be powered by four AA batteries or by AC adaptor.

  • NOTE: CLASS II - Rx Required

  • Five TENS Modes: Burst / Normal / Modulation / SD1 / SD2

  • Three EMS Modes: Constant / Synchronous, / Alternate /

  • System includes device, AC adaptor, four lead wires, eight self-adhesive reusable electrodes, four AA batteries, hard plastic carrying case and instruction manual

  • Built in patient compliance monitor

  • Power Source: 4 AA batteries

  • Pulse Width: 50-300 üs, adjustable

  • Pulse Rate: 2-150 Hz, adjustable

  • Pulse Ramp: 1-8 seconds

  • Pulse Amplitude: Adjustable: 100 mA peak into 500 ohm load

  • Contraction Time: 2-90 seconds, 1 sec./step

  • Relaxation Time: 0-90 seconds, 1 sec./step

  • One year warranty

Downloads

Product Flyer

Product Flyer

To Locate Your Distributor, Call: 888.549.4945

Ordering Details

  • DS5002

Standard Accessories

  • CC5081
    • Carrying Case
  • (2) WW3005
    • Lead Wires, 45", 2/pk
  • TA5013-I
    • Alkaline 9V Battery
  • (2) EP2020WC2-INTM
    • InTENSity Electrodes, 2" x 2", Mini 4/pk
  • DI0001X
    • AC Adapter

Technical Specifications

  • Power Source:
    • 4 AA batteries
  • Pulse Width:
    • 50 – 300 s, adjustable
  • Pulse Rate:
    • 2 – 150 Hz, adjustable
  • Pulse Ramp:
    • 1 – 8 seconds
  • Pulse Amplitude:
    • Adjustable: 100 mA peak into 500 ohm load
  • Contraction Time:
    • 2 – 90 seconds, 1 sec./step
  • Relaxation Time:
    • 0 – 90 seconds, 1 sec./step
  • Wave Form:
    • Asymmetrical Bi-Phase Square Pulse
  • Timer:
    • 1 – 60 minutes or continuous
